U269 MAR

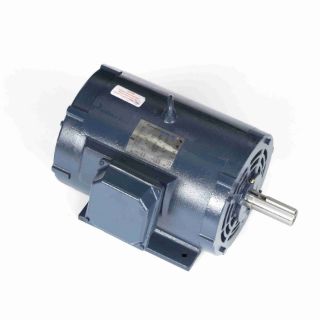

Picture of U269 MAR

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U269

CBT Inventory

0

Vendor Inventory

Loading...

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

215TTDC6076

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Motor will accept a C-face kit

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	16.38
CE:	N
Connection Drawing Number:	005010-20ME
Country of Origin:	China
CSA:	Y
Current:	15.8-15.0/7.5
DE Bearing Size:	6308
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	90.2
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Material:	Cast Iron
Frame Size:	215
Frame Suffix:	T
Frame Type:	215T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	5
Insulation Class:	F
IP Code:	22
KVA Code:	J
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6208
ODE Bearing Type:	Ball
Outline Drawing Number:	16954960ME
Phases:	3
Power Factor:	68.6
Power Rating (HP):	5
Power Rating (kW):	3.7
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.375
Shaft Extension:	3.38
Shaft Type:	T
Speed:	1180
Speed Max:	1180
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	208-230/460
