U290 MAR

Name: U290 MAR
Brand: Marathon Electric Motors
SKU: U290 MAR
Availability: OutOfStock

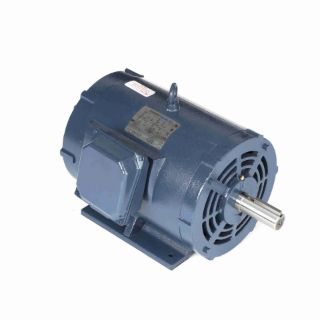

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U290

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

256TTDC6029

Features

Meets or exceeds all USA mandated efficiencies Motors are suitable for 10:1 VT and 10:1 CT 1.15 Service Factor on sinewave, 1.0 Service Factor on IGBT power 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting

Specifications

Assembly/Box Mounting:	F1/F2 CAPABLE
C Dim (IN):	22.60
CE:	Y
Connection Drawing Number:	005190.01
Country of Origin:	China
CSA:	Y
Current:	19.2
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	93
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Drip Proof
Frame Material:	Cast Iron
Frame Size:	256
Frame Suffix:	T
Frame Type:	256T
Frequency:	60
HP:	20
Insulation Class:	F
IP Code:	22
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6208
ODE Bearing Type:	Ball
Outline Drawing Number:	16955160ME-256T
Phases:	3
Power Factor:	83
Power Rating (HP):	20
Power Rating (kW):	14.9
Resistance Main:	.41
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.625
Shaft Extension:	4.25
Shaft Type:	T
Speed:	1775
Speed Max:	1775
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	575
