U422 MAR

Name: U422 MAR
Brand: Marathon Electric Motors
SKU: U422 MAR
Availability: OutOfStock

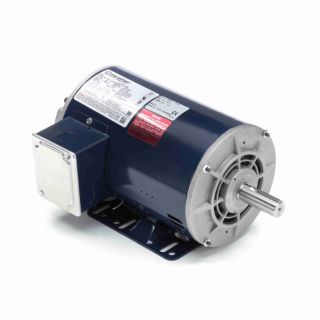

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U422

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

145TTDR4134

Features

EISA compliant efficiencies, as noted Ball bearings NEMA Service Factors Motor will accept a C-face kit 56H, 143T, and 145T combination base with 12 mounting holes F1 mounting only, cannot reassemble to F2 NEMA design B Will become build-up item when current stock is gone

Specifications

Assembly/Box Mounting:	F1 Only
C Dim (IN):	12.99
CE:	Y
Connection Drawing Number:	A-EE7335A
Country of Origin:	Mexico
CSA:	Y
Current:	6.7-6.2
DE Bearing Size:	6205
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	84
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	9.6
Frame Material:	Rolled Steel
Frame Size:	145
Frame Suffix:	T
Frame Type:	145T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	2
Insulation Class:	B
IP Code:	22
KVA Code:	M
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-100085-906
Phases:	3
Power Factor:	76.7
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	1.96
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	0.875
Shaft Extension:	2.28
Shaft Type:	T
Speed:	1745
Speed Max:	1745
Starting Type:	Across The Line
Type of Overload Protector:	Automatic
UL:	Recognized
Voltage:	200-208
