U501 MAR

Name: U501 MAR
Brand: Marathon Electric Motors
SKU: U501 MAR
Availability: OutOfStock

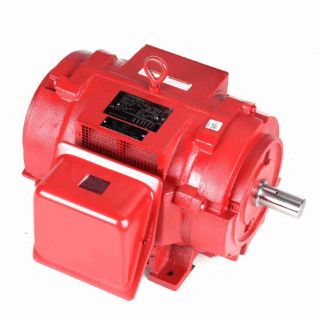

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U501

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

256TTDX4020

Features

Red paint on 25 HP through 200 HP NEMA Design B, Code G or less Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage Single voltage motors have 12 leads and are suitable for wye-delta, across the line, or part winding start Will accept C-Face kits, see Accessories section for kits

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	22.32
CE:	Y
Connection Drawing Number:	A-EE7358
Country of Origin:	United States of America
CSA:	Y
Current:	66.5/33.5
DE Bearing Size:	6309
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	91
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	15.45
Frame Material:	Rolled Steel
Frame Size:	256
Frame Suffix:	T
Frame Type:	256T
Frequency:	60
HP:	25
Insulation Class:	B
IP Code:	12
KVA Code:	G
Max Ambient:	50°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6208
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS86503-1545
Phases:	3
Power Factor:	88.3
Power Rating (HP):	25
Power Rating (kW):	18.7
Resistance Main:	.365
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.625
Shaft Extension:	4.19
Shaft Type:	T
Speed:	3520
Speed Max:	3520
Starting Type:	Wye Start Delta Run
Type of Overload Protector:	No
UL:	No
Voltage:	200/400
