U520 MAR

Name: U520 MAR
Brand: Marathon Electric Motors
SKU: U520 MAR
Availability: OutOfStock

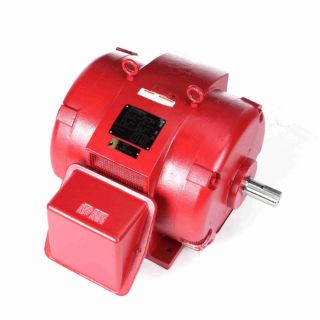

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U520

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

364TTDS4328

Features

Red paint on 25 HP through 200 HP NEMA Design B, Code G or less Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage Single voltage motors have 12 leads and are suitable for wye-delta, across the line, or part winding start Will accept C-Face kits, see Accessories section for kits 230/460 and 460 Volt models rated for 50 HZ at next lower HP, 1.15 SF

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	28.64
CE:	Y
Connection Drawing Number:	A-EE7308AA
Country of Origin:	United States of America
CSA:	Y
Current:	144.0/72.0
DE Bearing Size:	6314
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	93.6
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	14.
Frame Material:	Cast Iron
Frame Size:	364
Frame Suffix:	T
Frame Type:	364T
Frequency:	60
HP:	60
Insulation Class:	B
IP Code:	12
KVA Code:	F
Max Ambient:	50°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	4
Number of Speeds:	1
ODE Bearing Size:	6312
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS509461-1400
Phases:	3
Power Factor:	83.5
Power Rating (HP):	60
Power Rating (kW):	45.0
Resistance Main:	.115
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	2.375
Shaft Extension:	6.13
Shaft Type:	T
Speed:	1780
Speed Max:	1780
Starting Type:	Part Wdg Start Low Volt Only & Wye Start Delta Run
Type of Overload Protector:	No
UL:	No
Voltage:	230/460
