U530 MAR

Name: U530 MAR
Brand: Marathon Electric Motors
SKU: U530 MAR
Availability: OutOfStock

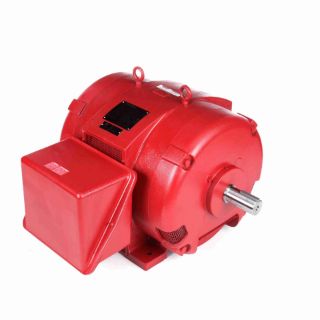

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U530

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

404TSTDS4017

Features

Red paint on 25 HP through 200 HP NEMA Design B, Code G or less Dual voltage motors have 12 leads, suitable for wye-delta or across the line start on either voltage, or part winding start on low voltage Single voltage motors have 12 leads and are suitable for wye-delta, across the line, or part winding start Will accept C-Face kits, see Accessories section for kits 230/460 and 460 Volt models rated for 50 HZ at next lower HP, 1.15 SF

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	29.50
CE:	Y
Connection Drawing Number:	A-EE7308AA
Country of Origin:	United States of America
CSA:	Y
Current:	284.0/142.0
DE Bearing Size:	6313
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	93.6
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	15.5
Frame Material:	Cast Iron
Frame Size:	404
Frame Suffix:	TS
Frame Type:	404TS
Frequency:	60
Harmonized Tariff Code:	8501.53.4080
HP:	125
Insulation Class:	B
IP Code:	12
KVA Code:	F
Max Ambient:	50°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6313
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS511744-1550
Phases:	3
Power Factor:	88
Power Rating (HP):	125
Power Rating (kW):	93.0
Resistance Main:	.055
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	2.125
Shaft Extension:	4.49
Shaft Type:	TS
Speed:	3560
Speed Max:	3560
Starting Type:	Part Wdg Start Low Volt Only & Wye Start Delta Run
Type of Overload Protector:	No
UL:	No
Voltage:	230/460
