U790 MAR

Name: U790 MAR
Brand: Marathon Electric Motors
SKU: U790 MAR
Availability: OutOfStock

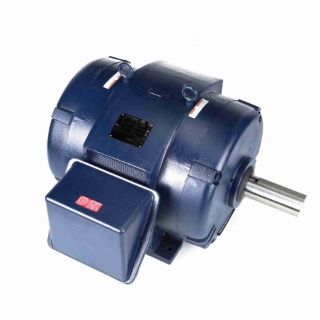

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U790

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

449TTDN16077

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Motor will not accept a C-face kit 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	48.29
CE:	Y
Connection Drawing Number:	A-EE7300BH
Country of Origin:	United States of America
CSA:	Y
Current:	365.0
DE Bearing Size:	6319
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	95.8
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	29.38
Frame Material:	Cast Iron
Frame Size:	449
Frame Suffix:	T
Frame Type:	449T
Frequency:	60
Harmonized Tariff Code:	8501.53.8040
HP:	300
Insulation Class:	F
IP Code:	12
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6318
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS514258-2938
Phases:	3
Power Factor:	80.5
Power Rating (HP):	300
Power Rating (kW):	224.0
Resistance Main:	.014
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	3.375
Shaft Extension:	8.75
Shaft Type:	T
Speed:	1185
Speed Max:	1185
Starting Type:	Part Wdg Start & Wye Start Delta Run
Type of Overload Protector:	No
UL:	Recognized
Voltage:	460
