U795 MAR

Name: U795 MAR
Brand: Marathon Electric Motors
SKU: U795 MAR
Availability: OutOfStock

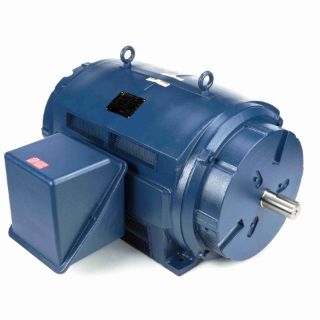

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U795

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

449TSTDN16004

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Motor will accept a C-face kit 12 Leads for WYE-DELTA, part winding on low voltage, or across-the-line starting

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	44.50
CE:	Y
Connection Drawing Number:	A-EE7300BH
Country of Origin:	United States of America
CSA:	Y
Current:	485.0
DE Bearing Size:	6314
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	96.2
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	29.38
Frame Material:	Cast Iron
Frame Size:	449
Frame Suffix:	TS
Frame Type:	449TS
Frequency:	60
Harmonized Tariff Code:	8501.53.8040
HP:	450
Insulation Class:	F
IP Code:	12
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6314
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS516498-2938
Phases:	3
Power Factor:	90
Power Rating (HP):	450
Power Rating (kW):	340.0
Resistance Main:	.0086
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	2.375
Shaft Extension:	5.02
Shaft Type:	TS
Speed:	3570
Speed Max:	3570
Starting Type:	Part Wdg Start & Wye Start Delta Run
Type of Overload Protector:	No
UL:	Recognized
Voltage:	460
