U901 MAR

Name: U901 MAR
Brand: Marathon Electric Motors
SKU: U901 MAR
Availability: OutOfStock

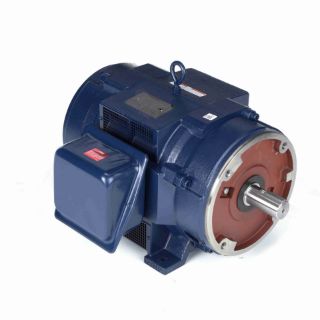

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U901

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

284TSTDP4004

Features

EISA compliant efficiencies, as noted Ball bearings NEMA Service Factors Motor will accept a C-face kit NEMA design B Will become build-up item when current stock is gone

Specifications

Assembly/Box Mounting:	F1/F2 Capable
C Dim (IN):	22.14
CE:	Y
Connection Drawing Number:	A-EE7300U
Country of Origin:	United States of America
CSA:	Y
Current:	83.0
DE Bearing Size:	6311
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	91
Electrical Type:	Squirrel Cage Induction Run
Enclosure Type:	Drip Proof
Frame Length (IN):	12.75
Frame Material:	Cast Iron
Frame Size:	284
Frame Suffix:	TS
Frame Type:	284TS
Frequency:	60
Harmonized Tariff Code:	8501.52.8040
HP:	30
Insulation Class:	B
IP Code:	23
KVA Code:	F
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	2
Number of Speeds:	1
ODE Bearing Size:	6210
ODE Bearing Type:	Ball
Outline Drawing Number:	B-SS207996-1275
Phases:	3
Power Factor:	85.5
Power Rating (HP):	30
Power Rating (kW):	22.4
Resistance Main:	.364
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.625
Shaft Extension:	3.45
Shaft Type:	TS
Speed:	3530
Speed Max:	3530
Starting Type:	Across The Line
Type of Overload Protector:	No
UL:	Recognized
Voltage:	200
