U915 MAR

Name: U915 MAR
Brand: Marathon Electric Motors
SKU: U915 MAR
Availability: OutOfStock

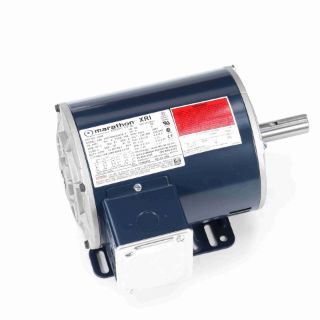

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

U915

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

184TTDW16076

Features

Meets or exceeds NEMA Premium® efficiency. Model is in compliance with EISA2007 Motor will accept a C-face kit F1 mounting only, cannot reassemble to F2

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	15.19
CE:	Y
Connection Drawing Number:	005102.01ME
Country of Origin:	Mexico
CSA:	Y
Current:	2.9
DE Bearing Size:	6206
DE Bearing Type:	Ball
Duty:	Continuous
Efficiency:	88.5
Electrical Type:	Squirrel Cage Inverter Rated
Enclosure Type:	Drip Proof
Frame Length (IN):	11.
Frame Material:	Rolled Steel
Frame Size:	184
Frame Suffix:	T
Frame Type:	184T
Frequency:	60
Harmonized Tariff Code:	8501.52.4000
HP:	2
Insulation Class:	F
IP Code:	22
KVA Code:	L
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Rigid Base
NEMA Design:	B
Number of Poles:	6
Number of Speeds:	1
ODE Bearing Size:	6205
ODE Bearing Type:	Ball
Outline Drawing Number:	035530-1100
Phases:	3
Power Factor:	59
Power Rating (HP):	2
Power Rating (kW):	1.5
Resistance Main:	3.9
Rotation:	Reversible
Service Factor:	1.15
Shaft Diameter (IN):	1.125
Shaft Extension:	2.81
Shaft Type:	T
Speed:	1170
Speed Max:	1170
Starting Type:	Line Or Inverter
Type of Overload Protector:	No
UL:	Recognized
Voltage:	575
