UB6X125MG OZG

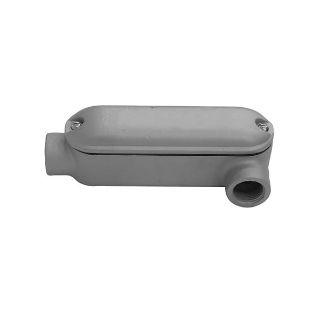

Picture of UB6X125MG OZG
Actual Product May Vary From Image

Product Details

Manufacturer:
Appleton
Manufacturer part number:
UB6X-125MG
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 5-7 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$296.80 / EA

Description

Brand Name

O-Z/Gedney

Type

Type UB

Description

O-Z/Gedney Mogul Conduit Body, Type UB, Series: UB6X, 1-1/4 in Hub, 2 Hubs, 40 cu-in Capacity, Tapered Female NPT Connection, Malleable Iron, Hot Dipped Galvanized, 10.25 in L x 2.38 in W x 4.13 in H Dimensions

Application

For rigid, IMC conduits and providing access to large, heavy conductors for pulling, splicing, maintenance and future changes/upgrades, allows connection of straight conduit runs, branch conduit runs and 90 deg bends

Standards

UL 514A | UL File No. E18095 | CSA C22.2 No. 18 | CSA 009795 | Federal Specification No. A-A-50563 | NEMA FB-1 | NEMA FB-2.10 | Class I, Division 2 Hazardous Locations per NEC 501.10(B)(4)

Features

  • Roomy interiors, more wiring space
  • Smooth, rounded integral bushings in hubs protect conductor insulation
  • Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
  • Supplied with built-in cable pulling rollers
  • Sizes with flat back design ideal where fitting is mounted flat against surface
  • 1/2 to 3 in blank covers are domed for extra wiring space
  • Suitable for wet locations when used with gasketed covers

Includes

Cover, Neoprene Gasket and Captive Stainless Steel Screws

Specifications

Capacity:40 cu-in
Connection Type:Tapered Female NPT
Country of Origin:MX
Dimensions:10.25 in L x 2.38 in W x 4.13 in H
Finish:Hot Dipped Galvanized
Hub Size:1-1/4 in
Material:Malleable Iron
Number of Hubs:2
Series:UB6X

Products Specifications

Brand Name
O-Z/Gedney
Size
1 1/4 in
