Home / UCF218-56 BLT

UCF218-56 BLT

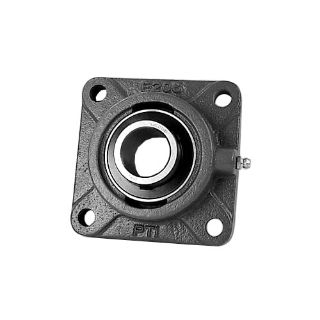

Picture of UCF218-56 BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
UCF218-56
CBT Inventory
0
Vendor Inventory
Loading...
CBT - Cincinnati
0
CBT - Springboro
0
CBT - Sidney
0
CBT - Lexington
0
CBT - Louisville
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$422.49 / EA

Description

Brand Name

PTI

Type

Normal Duty Non-Expansion Relubricatable

Description

PTI Flange Block Bearing, Normal Duty Non-Expansion Relubricatable, Series: UCF 200 Silver Series, 3-1/2 in Bore Dia, 7.36 in Bolt Center-to-Center Length, 4-Bolt Flange Mounting, 9-1/4 in Overall Length/Diameter, 9-1/4 in Overall Depth, 3.79 in Overall Height, Set Screw Locking Device

Standards

AISI/SAE 52100

Features

Cast iron housing

Specifications

Bearing Material:Cast Iron
Bolt Center-to-Center Length:7.36 in
Bore Diameter:3-1/2 in
Flange Mounting Type:4-Bolt
Load Capacity:21581.66 lb Dynamic/16073.84 lb Static
Locking Device:Set Screw
Overall Depth:3.7913 in
Overall Height:3.79 in
Overall Length/Diameter:9-1/4 in
Series:UCF 200 Silver Series

Resources
