Home / UCFL203-11 BLT

UCFL203-11 BLT

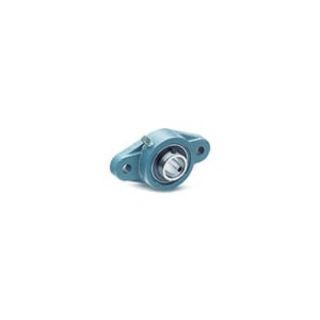

Picture of UCFL203-11 BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
UCFL203-11
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$32.45 / EA

Description

Brand Name

PTI

Type

Normal Duty

Description

PTI Ball Bearing, Normal Duty, Series: Silver UCFL 200, 11/16 in Bore, 3.01 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 3.9 in Overall Length/Diameter, 1.22 in Overall Depth, 2.24 in Overall Height, Set Screw Locking Device, Cast Iron Bearing, 2900 lb Dynamic/2500 lb Static Load, 8800 rpm Maximum, 10 to 200 deg F

Standards

AISI/SAE 52100

Features

  • Dual heavy duty slinger type contact seals
  • Anti-rotation device

Specifications

Bearing Material:Cast Iron
Bolt Center-to-Center Length:3.01 in
Bore Diameter:11/16 in
Country of Origin:US
Flange Mounting Type:2-Bolt Flange
Load Capacity:2877.55 lb Dynamic/1494.98 lb Static
Locking Device:Set Screw
Maximum Speed:8800 rpm
Overall Depth:1.22 in
Overall Height:2.24 in
Overall Length/Diameter:3.9 in
Series:Silver UCFL 200
Temperature Rating:10 to 200 deg F
