Home / UCFL211-34 BLT

UCFL211-34 BLT

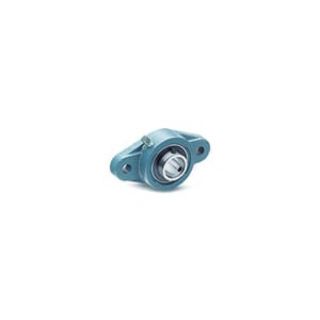

Picture of UCFL211-34 BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
UCFL211-34
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$87.03 / EA

Description

Brand Name

PTI

Type

Normal Duty

Description

PTI Ball Bearing, Normal Duty, Series: Silver UCFL 200, 2-1/8 in Bore, 7.24 in Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 8.82 in Overall Length/Diameter, 2.3 in Overall Depth, 5.12 in Overall Height, Set Screw Locking Device, Cast Iron Bearing, 9780 lb Dynamic/6580 lb Static Load, 3100 rpm Maximum, 10 to 200 deg F

Standards

AISI/SAE 52100

Features

  • Dual heavy duty slinger type contact seals
  • Anti-rotation device

Specifications

Bearing Material:Cast Iron
Bolt Center-to-Center Length:7.24 in
Bore Diameter:2-1/8 in
Country of Origin:US
Flange Mounting Type:2-Bolt Flange
Load Capacity:9779.19 lb Dynamic/6564.42 lb Static
Locking Device:Set Screw
Maximum Speed:3100 rpm
Overall Depth:2.2992 in
Overall Height:5.1181 in
Overall Length/Diameter:8.8189 in
Series:Silver UCFL 200
Temperature Rating:10 to 200 deg F
