Home / UCFL214-70MM BLT

UCFL214-70MM BLT

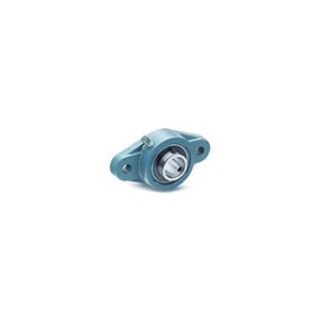

Picture of UCFL214-70MM BLT
Actual Product May Vary From Image

Product Details

Manufacturer:
Bearings Limited
Manufacturer part number:
UCFL214-70MM
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$169.32 / EA

Description

Brand Name

PTI

Type

Normal Duty

Description

PTI Ball Bearing, Normal Duty, Series: Silver UCFL 200, 70 mm Bore, 216 mm Bolt Center-to-Center Length, 2-Bolt Flange Mounting, 265 mm Overall Length/Diameter, 75.4 mm Overall Depth, 157 mm Overall Height, Set Screw Locking Device, Cast Iron Bearing, 61160 N Dynamic/44000 N Static Load, 2450 rpm Maximum, 10 to 200 deg F

Standards

AISI/SAE 52100

Features

  • Dual heavy duty slinger type contact seals
  • Anti-rotation device

Specifications

Bearing Material:Cast Iron
Bolt Center-to-Center Length:216 mm
Bore Diameter:70 mm
Country of Origin:US
Flange Mounting Type:2-Bolt Flange
Load Capacity:13668.38 lb Dynamic/10116.4 lb Static
Locking Device:Set Screw
Maximum Speed:2450 rpm
Overall Depth:2.9685 in
Overall Height:157 mm
Overall Length/Diameter:10.4331 in
Series:Silver UCFL 200
Temperature Rating:10 to 200 deg F

Resources

Video
