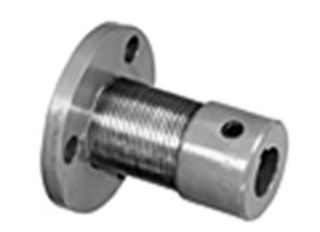

UFH50R CPLG 1/2 N/KW W/SS LOV

A flange to shaft configuration, this couples flange mounted equipment to a shaft with all the benefits of Uniflex versatility. The stock flange plate is the same as used on the UF-type. The one-piece UFH-type Coupling is similar to the U-type, except that one hub is replaced by a flange plate. Stock flange sizes are shown in the dimensional data table below but other sizes can be made to order. As with the other Uniflex styles, this Coupling compensates for high degrees of angular and parallel misalignment with very little backlash or windup and is reliable in harsh or severe environments. Regular and short versions are available for each size to accommodate different overall length requirements. For increased versatility, the hub can be modified with a tapered, spline, hex or square bore. The standard hub is furnished with either a pre-drilled pin hole or with a keyway and setscrew. Specify when ordering.

Lovejoy® Coupling, Type UFH Flange to Shaft, Series: Uniflex, 1/2 in Bore, 2 in OD, 2.03 in Overall Length, Regular Hub, 1.04 in Dia Hub, 0.64 in Length Through Bore, 82 in-lb Torque, 30000 rpm Maximum, 1.04 in Dia Shaft Connection, -40 to 250 deg F, Steel, Metallic
