USB15X2BK HWD

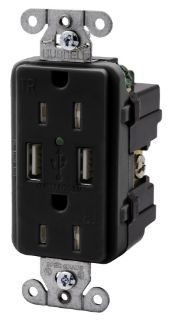

Picture of USB15X2BK HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
USB15X2BK
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Duplex

Description

Hubbell® USB Charger receptacle provides both USB and AC electrical power in a standard single gang electrical opening. Designed to provide more charging options for personal electronics. Ideal for use in renovation, new construction and to add capacity for USB charging. Especially suited for use in hotels, hospitals, offices, homes and more.
Wiring Device-Kellems USB Charger Receptacle, Duplex, Series: Decorator, 15 A at 125 VAC Electrical Rating, 1 ph ph, 2 Pole, 3 Wires, 14 to 12 AWG Wire, 1.1/2.0/3.0 USB, 2 USB Quantity, 3.8 A at 5 VDC USB, 4.12 in H x 1.3 in W x 1.96 in D Size, Thread Connection, Threaded Mounting, Commercial/Specification Grade, Wiring Method: Back/Side Wired, Composite/Thermoplastic, Black, Environmental Conditions: -40 to 75 deg C

Application

Commercial Applications

Standards

cULus | UL 498 | UL 94-V-2 Rating | NEMA WD1 | WD5 Compliant | Part 15 FCC

Features

  • Tamper resistant decorator duplex receptacle
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
  • Withstands 2000 VAC minimum dielectric voltage
  • Stainless steel rated for 10000 plug insertions and removal
  • 0.04 in steel zinc plated mounting strap
  • Flush fit in design
  • NEMA 5-15R rating

Specifications

Color:Black
Connection:Back/Side Wired
Country of Origin:CN
Electrical Ratings:15 A at 125 VAC
Environmental Conditions:-40 to 75 deg C
Grade:Commercial/Specification
Material:Composite/Thermoplastic
Mounting:Threaded
Number of Poles:2
Number of Wires:3
Phase:1 ph
Series:Decorator
Size:4.12 in H x 1.3 in W x 1.96 in D
USB Quantity:2
USB Rating:3.8 A at 5 VDC
USB Type:1.1/2.0/3.0
Wire Size:14 to 10 AWG
Wiring Method:Back/Side Wired
