USB15X2W HWD

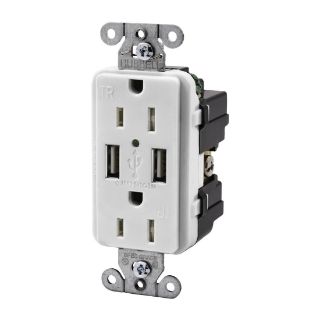

Wiring Device-Kellems USB15X2W Decorator Duplex Straight Blade Tamper-Resistant Receptacle and USB Charger, 125 VAC, 15 A, 1/2 hp, 1 ph Phase, 2 Poles, 3 Wires, White
Manufacturer part number: USB15X2W
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Wiring Device-Kellems

Type

Decorator Duplex Straight Blade Tamper-Resistant

Description

Hubbell USB charger receptacle provides both USB and AC electrical power in a standard 1-gang electrical opening. Designed to provide more charging options for personal electronics. Ideal for use in renovation, new construction and to add capacity for USB charging.
Wiring Device-Kellems Receptacle and USB Charger, Decorator Duplex Straight Blade Tamper-Resistant, 125 VAC, 15 A, 1/2 hp Electrical Rating, 1 ph ph, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0 USB, 2 USB Quantity, 3 A at 5 VDC USB, Class 2.0 Insulation, 4.12 in H x 1.96 in D Size, Back/Side Wired/Screw Connection, Flush/Threaded Mounting, Commercial/Specification Grade, Wiring Method: Grounding, RTP, White, Environmental Conditions: -40 to 75 deg C Operating Temperature

Application

For use with USB 1.1/2.0/3.0 devices, including Apple® products

Standards

cULus Listed | UL 498 | UL 94V-2 Flammability Rating

Features

  • Green LED indicator to show USB power available
  • Impact and chemical resistant
  • Flush fit design
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products

Specifications

Color:White
Connection:Back/Side Wired/Screw
Country of Origin:CN
Electrical Ratings:125 VAC, 15 A, 1/2 hp
Environmental Conditions:-40 to 75 deg C Operating Temperature
Grade:Commercial/Specification
Insulation:Class 2.0
Material:RTP
Mounting:Flush/Threaded
Number of Poles:2
Number of Wires:3
Phase:1 ph
Size:4.12 in H x 1.75 in W x 1.96 in D
USB Quantity:2
USB Rating:3 A at 5 VDC
USB Type:Class A
Wire Size:14 to 10 AWG
Wiring Method:Back/Side Wired
