USB20X2LA HWD

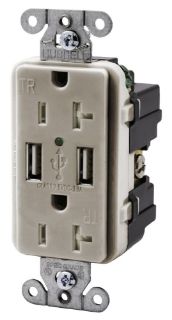

Picture of USB20X2LA HWD
Actual Product May Vary From Image

Product Details

Manufacturer:
Hubbell Wiring Device-Kellems
Manufacturer part number:
USB20X2LA
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Wiring Device-Kellems

Type

Decorator Duplex Standard Tamper Resistant

Description

Wiring Device-Kellems StyleLine® USB Charger Receptacle, Duplex Standard, 125 VAC, 20 A, 1 hp Electrical Rating, 2 Pole, 3 Wires, 14 to 10 AWG Wire, Type-A USB 2.0 USB, 2 USB Quantity, 3.8 A at 5 VDC USB, 4.12 in H x 1.31 in W x 2 in D Size, Threaded Mounting, Commercial/Industrial Grade, Wiring Method: Grounding, RTP, Light Almond, Environmental Conditions: -40 to 75 deg C Operating Temperature

Application

For use in renovation, new construction and to add capacity for USB charging and especially suited for use in hotels, hospitals, offices, homes and more

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | CSA Certified | FCC Part 15 | NEMA WD1/WD5 | WD6 | UL 498 | 1310 | UL94 V-2

Features

  • Tamper resistant decorator duplex receptacle
  • Green LED indicator to show USB power available
  • Compatible with USB 1.1/2.0/3.0 devices, including Apple® products
  • Green LED indicator
  • Plated steel contacts, clamps and terminal screws
  • 0.04 in steel zinc plated mounting strap
  • Zinc plated steel mounting screw
  • Stainless steel USB port rated for 10000 plug insertions and removal
  • Withstands 2000 VAC minimum dielectric voltage
  • Ratings are a permanent part of the device housing
  • 14 to 10 AWG copper stranded/solid conductor only terminal accommodation
  • Terminals identified in accordance with UL 498 and CSA certified

Specifications

Color:Light Almond
Connection:Screw
Country of Origin:CN
Electrical Ratings:125 VAC, 20 A, 1 hp
Environmental Conditions:-40 to 75 deg C Operating Temperature
Grade:Commercial/Industrial
Material:RTP
Mounting:Threaded
Number of Poles:2
Number of Wires:3
Size:1.3 in W x 1.96 in D x 4.12 in H
USB Quantity:2
USB Rating:3.8 A at 5 VDC
USB Type:2.0 Type
Wire Size:14 to 10 AWG
Wiring Method:Grounding
