USFM10 FER

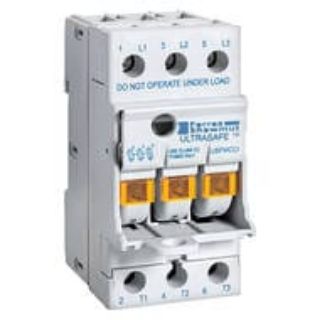

Picture of USFM10 FER
Actual Product May Vary From Image

Product Details

Manufacturer:
Mersen
Manufacturer part number:
USFM10
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 30 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$111.22 / EA

Description

Brand Name

Mersen

Description

MERSEN UltraSafe™ fuse modules (USFM) have a unique, compact design suited for use with 45 mm W IEC contactors. These modules also offer other features not found on other class CC and midget UltraSafe™ fuse holders such as an auxiliary contact option. When the auxiliary is wired to an adjacent contactor the load is dropped out by the contactor immediately once the fuse extractor handle is opened. Additionally, the fuse module features padlock capabilities, compact busbars for line side terminations and tool free removal from DIN rail. Yet the fuse modules still incorporate well known UltraSafe™ features such as IP20 protection, easy operating fuse extraction handles and an open fuse visual indication option.
Mersen UltraSafe™ Fuse Holder, Series: USFM, 600 VAC/VDC, 30 A, 3 Pole, 3 ph, Class: Midget, Pressure Plate Connection, 16 to 10 AWG, 10 to 6 AWG Wire, DIN Rail Mounting, 38 mm Fuse Length, 10 mm Diameter Fuse, 75 deg C, For Use With: UL, gG, aM and gR IEC Fuse, Latamid, 1.77 in W x 2.85 in D x 3.54 in H Dimensions

Application

For primarily replacement of circuit breakers in motor circuits to achieve higher SCCR, circuits up to 600 VAC for motors, control, transformers applications requiring lock-out/ tag-out procedures

Standards

CSA C22.2 Class 6225 File No. 32169 | CSA Class 6225-01 File No. 032169_0_000 | IEC 60269-1/60947-3 | RoHS Compliant | UL 4248-1 File No. E319605 | UL 4248-4 IZLT2 File No. E52283 | UL 508 File No. E336456

Features

  • Dedicated 3-pole fuse module
  • Compact footprint with 45 mm W
  • IP20 fingersafe design
  • Ability to padlock in open position with 1/4 in Dia shank
  • DIN rail mount with tool free removal
  • Quick, easy fuse change

Specifications

Amperage Rating:30 A
Class:Midget
Connection Type:Pressure Plate
Country of Origin:MX
Dimensions:1.77 in W x 2.85 in D x 3.54 in H
Fuse Diameter:10 mm
Fuse Length:38 mm
Material:Latamid
Mounting Type:DIN Rail
Number of Phases:3
Number of Poles:3
Series:USFM
Suitable For Use With:UL, gG, aM and gR IEC Fuse
Temperature Rating:75 deg C
Voltage Rating:600 VAC/VDC
Wire Size:16 to 10 AWG, 10 to 6 AWG
