USM1I-DC1000 FER

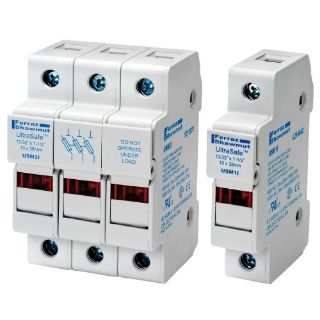

MERSEN UltraSafe™ modular fuse holders introduce a new level of safety for class CC and midget fuses up to 30 A. UltraSafe™ fuse holders qualify as "finger safe" under IEC and DIN standards to an IP20 grade of protection, including fuse changing (with the flick of a finger). UltraSafe™ fuse holders are available in 1, 2, 3 or 4 poles, with or without visual blown fuse indicators in each pole. Multiple poles can be assembled in the field by ordering and installing pin-tie handles. UltraSafe™ fuse holders save up to 15 percent mounting space and any combination can be snapped onto 35 mm DIN rail for extra savings in panel building time. Choose class CC fuses for type "2" no damage protection, one of the safest protection packages in the industry. The UltraSafe™ body material is tough and durable polyamide, with exceptional insulating properties.

Mersen UltraSafe™ Modular Fuse Holder, Series: USM, 600 VAC/1000 VDC, 30 A, 1 Pole, 1 Phase, Class: Midget, Pressure Plate, 14 to 10 AWG, 14 to 6 AWG Wire, DIN Rail Mount, 1-1/2 in Fuse Length, 13/32 in Fuse Dia, -40 to 85 deg C, For Use With: ATM and DCT Series Fuse, Plastic, 0.69 in W x 3.07 in D
