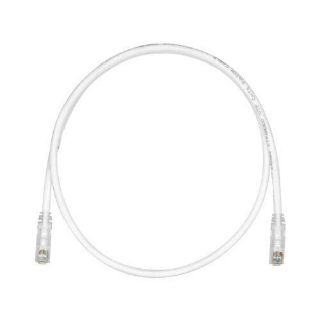

Picture of UTPSP3GYY PAN
Actual Product May Vary From Image

UTPSP3GYY PAN

Panduit® TX6™ PLUS UTPSP3GYY U/UTP Patch Cord, Cat 6, 24 AWG Stranded Copper Conductor, RJ-45 Connector, 3 ft L Cord, Gray
Manufacturer: Panduit
Manufacturer part number: UTPSP3GYY
Availability: Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
9 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$17.24

Product Details

Brand Name

Panduit®

Type

U/UTP

Description

Category 6/Class E, UTP patch cords shall be constructed of 24 AWG unshielded twisted pair stranded copper cable with an enhanced performance modular plug at each end. Patch cord cable shall be offered in multiple colored UTP cable for design flexibility with a clear strain relief boot on each modular plug. All patch cords shall be compatible with both T568A and T568B wiring schemes.
Panduit® TX6™ PLUS Patch Cord, U/UTP, Series: UTPSP, Category: Cat 6, 24 AWG Conductor, Stranded Copper Conductor, RJ-45 Connector, 3 ft Cord Length, Gray, 14 to 140 deg F

Application

10BASE-T (Ethernet), 100BASE-T (Fast Ethernet), 1000BASE-T, 10GBASE-T, 155 Mb/s ATM, 622 Mb/s ATM, 1.2 Gb/s ATM, Token Ring 4/16, Digital Video and Broadband/Baseband Analog Video, Voice Over Internet Protocol (VoIP)

Standards

ARRA Compliant | Buy American Act Compliant | RoHS Compliant | ANSI/TIA-568-C.2, 1096-A | ISO 11801 Class E | IEEE 802.3af, 802.3at, 802.3bt Type 3 and Type 4 for PoE, PoE+ Compliant | UL 1863 | IEC 60603-7 | CE Certified | CM Flammability Rating

Features

  • 100% performance tested for wire map, NEXT and return loss
  • Centered de-embedded plug
  • Integral pair manager
  • Patented tangle free latch
  • Slender strain relief boot
  • Robust construction

Specifications

Category Type:Cat 6
Color:Gray
Conductor Size:24 AWG
Conductor Type:Stranded Copper
Connector Type:Modular Plug
Cord Length:3 ft
Jacket Color:Gray
Series:UTPSP
Temperature Rating:14 to 140 deg F
