VAN-031-00 MEN

Product Details

Manufacturer:
Manufacturer part number:
VAN-031-00
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 4-6 days.
Estimated dates are contingent upon manufacturer stock.

Description

Type

Solenoid Valve Connectors

Description

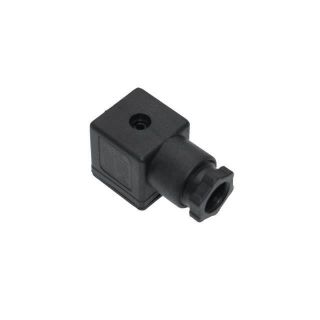

The DIN 43650 Form A (18mm) solenoid valve connectors from Mencom are designed to provide easy and reliable quick disconnect options for many valve applications. The universal design allows for worry free installation whether a new application or maintenance and repair. These quality solenoid valve connectors are available in field wireable models, over molded versions with different cable lengths, and with quick disconnect receptacles or plugs. Mencom also offers connectors with a wide range of circuitry, including MOV??s, Flyback Diodes, and Braided Rectifiers.

Specifications

Amerage Rating:10
Cable OD Range:PG11 8-10mm
Color Code:DIN 43650
Component Type:Field Wireable
Coupling Thread Gender 1:Form A 18mm
Gender:Female
Groundwire:No
Ingress Protection:IP65
Lower AWG:20
Mencom Series:Form A 18mm
Mounting Thread:PG-11
Orientation Head 1:Female Right Angle
Pin Count:4
Rated Block:Valve Connector
Upper AWG:16
Voltage Rating:250
