VAS1 3/16 TKN

Name: VAS1 3/16 TKN
Brand: Timken
SKU: VAS1 3/16 TKN
Price: 141.03 USD
Availability: OutOfStock

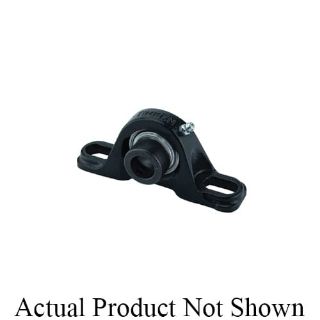

Actual Product May Vary From Image

Product Details

Manufacturer:

Timken

Manufacturer part number:

VAS1 3/16

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$141.03 / EA

Description

Brand Name

Fafnir®

Type

Standard Duty

Description

Designed to maximize performance, Timken® Fafnir® ball bearing housed units combine the bearing, housing, seal and locking system into one device for easy installation and operation. Timken® Fafnir® housed units feature specialized product lines to solve specific application concerns. Our problem solver series helps prevent downtime by using superior technology to keep equipment running efficiently and improve your bottom line.

Fafnir® Pillow Block Ball Bearing Housed Unit, Standard Duty, Series: VAS Standard Series, 1.2502 in Bore, 4.6259 in Bolt Center-to-Center Length, 1.6874 in Base to Bore Centerline, 6.1889 in Overall Length, 1.832 in Overall Width, 3.2795 in Overall Height, High Base Mounting, Round Bore, 1-9/16 in Base Width, Eccentric Self-Locking Collar Locking Device, Contact Seal, 4850 lb Dynamic/2530 lb Static Load, Cast Iron

Application

Agricultural, Food Processing, Fans, Blowers and Conveyors Applications

Standards

Precision Class ABEC 1

Features

VAS series uses slightly different base to center dimensions than the VAK
This pillow block uses the RA-RR bearing that employs positive contact, land-riding seal and a self-locking collar, collar ensures positive shaft retention
The pillow block can be mounted to operate in any position
Bearing housed units are factory pre-lubricated
Timken® VAS pillow blocks are similar in design and features, and equal in load-carrying capacity, to the VAK series
The slightly different base-to-center height dimension makes them interchangeable with certain other competitive designs
The units are pre-lubricated and ready for immediate installation
A grease fitting is provided for relubrication

Specifications

Base to Bore Centerline:	1.6874 in
Base Width:	1-9/16 in
Bolt Center-to-Center Length:	4.6259 in
Bore Diameter:	1.2502 in
Bore Type:	Round
Expansion Type:	Non-Expansion (Fixed)
Finish:	Uncoated
Load Capacity:	4850 lb Dynamic/2530 lb Static
Locking Device:	Eccentric Self-Locking Collar
Material:	Cast Iron
Maximum Speed:	4570 rpm
Mounting Type:	High Base
Overall Height:	3.2795 in
Overall Length:	6.1889 in
Overall Width:	1.832 in
Seal Type:	Contact
Series:	VAS Standard Series
Temperature Rating:	250 deg F
