VBL3507 BLD

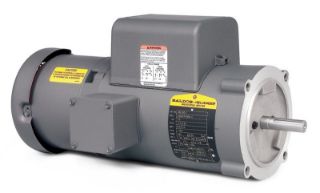

Picture of VBL3507 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VBL3507
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,114.39 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

.75HP,1725RPM,1PH,60HZ,56C,BRAKE,3428LC

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:4.2 A; 8.4 A
Horsepower:0.750 hp
Insulation Class:F
Mounting:F1
NEMA Design:N
NEMA Nominal Efficincy:72.00%
Phase:Single Phase
Power Factor:78
Rotation:Reversible
Service Factor:1.25
Speed Rating:1,725 rpm
Voltage Rating:230 V; 115 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TEFC
Frame
56C
Frequency Rating
60 Hz
Horsepower
3/4 HP
Speed Rating
1800 RPM
Type
Brake Motor
Voltage Rating
115/230 VAC
