VBM3542 BLD

Name: VBM3542 BLD
Brand: Baldor Reliance
SKU: VBM3542 BLD
Price: 1,669.18 USD
Availability: OutOfStock

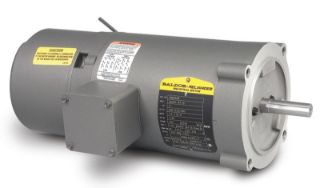

Actual Product May Vary From Image

Product Details

Manufacturer:

Baldor Reliance

Manufacturer part number:

VBM3542

CBT Inventory

Vendor Inventory

Availability:

Ships in 1-3 days.

Estimated dates are contingent upon manufacturer stock.

$1,669.18 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; Brake Motor; Speed Rating: 1725 RPM; Frequency Rating: 60 HZ; Torque Rating: 2.25 LB-FT Full Load, 9 LB-FT Break Down, 6.2 LB-FT Pull-Up, 8.7 LB-FT Locked-Roter At 460 V, 60 HZ, 0.75 HP; Frame: 56C; Service Factor: 1; Horsepower: 0.75 HP;

Application

General Purpose

Features

.75HP,1725RPM,3PH,60HZ,56C,BRAKE,3428M

Specifications

Base:	No mounting
Country of Origin:	US
Duty:	Continuous
Enclosure:	TENV
Frame:	56
Frequency Rating:	60 Hz
Full Load Current:	1.3 A; 2.6 A; 2.9 A
Horsepower:	0.750 hp
Insulation Class:	F
Mounting:	F1
NEMA Design:	B
NEMA Nominal Efficincy:	75.00%
Phase:	Three Phase
Power Factor:	71
Rotation:	Reversible
Service Factor:	1
Speed Rating:	1,725 rpm
Voltage Rating:	460 V; 230 V; 208 V
