VBM3611T-D BLD

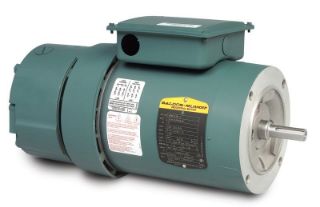

Picture of VBM3611T-D BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VBM3611T-D
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

3HP,1750RPM,3PH,60HZ,182TC,3542M,TEFC,F3

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:182
Frequency Rating:60 Hz
Full Load Current:4.2 A; 8.4 A; 9.1 A
Horsepower:3.000 hp
Insulation Class:F
Mounting:F3
NEMA Design:A
NEMA Nominal Efficincy:87.50%
Phase:Three Phase
Power Factor:78
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,750 rpm
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TEFC
Frame
182TC
Frequency Rating
60 Hz
Horsepower
3 HP
Speed Rating
1800 RPM
Type
Unit Handling Motor
Voltage Rating
208-230/460 VAC
