VECP2276T BLD

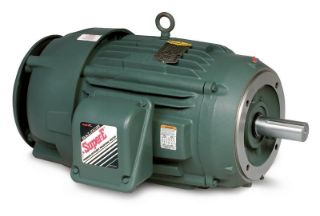

Picture of VECP2276T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VECP2276T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$4,759.88 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Super E Chemical Processing

Features

7.5HP,1180RPM,3PH,60HZ,254TC,0954M,TEFC

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:254
Frequency Rating:60 Hz
Full Load Current:10.7 A; 21.4 A
Horsepower:7.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:91.70%
Phase:Three Phase
Power Factor:71
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,180 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V

Resources

Spec SheetWarranty

Products Specifications

Application
Severe Duty
Brand Name
Baldor
Enclosure
TEFC
Frame
254TC
Frequency Rating
60 Hz
Horsepower
7 1/2 HP
Speed Rating
1200 RPM
Type
Severe Duty Motor
Voltage Rating
230/460
