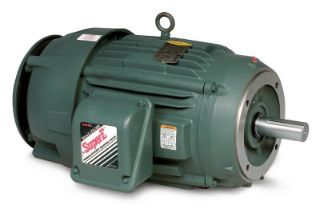

Picture of VECP2333T-4 BLD
Actual Product May Vary From Image

VECP2333T-4 BLD

15HP,1765RPM,3PH,60HZ,254TC,0944M,TEFC,F
Manufacturer: Baldor Reliance
Manufacturer part number: VECP2333T-4
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
$4,144.96

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Super E Chemical Processing

Features

15HP,1765RPM,3PH,60HZ,254TC,0942M,TEFC,F

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:254
Frequency Rating:60 Hz
Full Load Current:18.5 A
Horsepower:15.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:92.40%
Phase:Three Phase
Power Factor:82
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,765 rpm
Sub Brand:Super-E
Voltage Rating:460 V

Resources

Spec SheetWarranty
