VEM3546-5 BLD

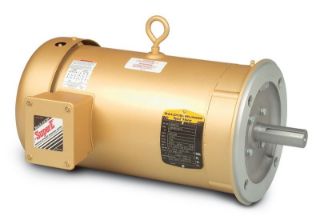

Picture of VEM3546-5 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VEM3546-5
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$953.82 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

CA501;Catalog;9/3/2012;

Application

General Purpose

Features

1HP,1760RPM,3PH,60HZ,56C,3519M,TEFC,F1,N

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:1.2 A
Horsepower:1.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:85.50%
Phase:Three Phase
Power Factor:71
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,760 rpm
Sub Brand:Super-E
Voltage Rating:575 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TEFC
Frame
56C
Frequency Rating
60 Hz
Horsepower
1 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
575 V
