VEWDM3538 BLD

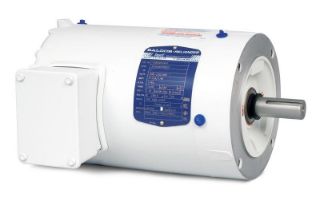

Picture of VEWDM3538 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VEWDM3538
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,216.97 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

CA501;Catalog;3/30/2008;CA501;Catalog;1/2/2011;CA501;Catalog;9/3/2012;

Application

Wash Down

Features

.5HP,1740RPM,3PH,60HZ,56C,3512M,TENV,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:56
Frequency Rating:60 Hz
Full Load Current:1.6 A; 0.8 A; 1.8 A
Horsepower:0.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:80.00%
Phase:Three Phase
Power Factor:69
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,740 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TENV
Frame
56C
Frequency Rating
60 Hz
Horsepower
1/2 HP
Speed Rating
1800 RPM
Type
Wash Down Motor
Voltage Rating
208-230/460
