VEWDM3615T BLD

Picture of VEWDM3615T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VEWDM3615T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$2,404.99 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down

Features

5HP,1750RPM,3PH,60HZ,184TC,3642M,TEFC,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:184
Frequency Rating:60 Hz
Full Load Current:13.4 A; 13.9 A; 6.7 A
Horsepower:5.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:89.50%
Phase:Three Phase
Power Factor:78
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,750 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
184TC
Frequency Rating
60 Hz
Horsepower
5 HP
Speed Rating
1800 RPM
Type
Wash Down Motor
Voltage Rating
208-230/460

Customers who bought this item also bought

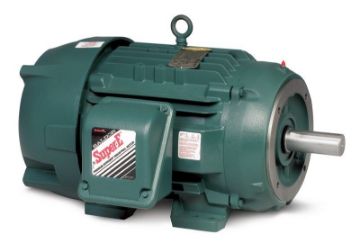

Picture of CECP3587T BLD

CECP3587T BLD

MFG: Baldor Reliance
MFG#:CECP3587T
Info:2HP,1755RPM,3PH,60HZ,145TC,0535M,TEFC,F1
$ -.--

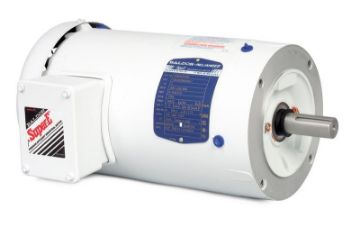

Picture of VEWDM3710T BLD
