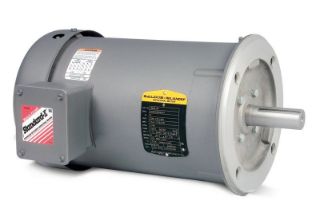

VM3534 BLD

Picture of VM3534 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VM3534
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$464.79 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 230/460 VAC; Torque Rating: 1 LB-FT Full Load, 4.7 LB-FT Break Down, 3.35 LB-FT Pull-Up, 3.75 LB-FT Locked-Roter At 460 V, 60 HZ, 0.33 HP; Horsepower: 0.33 HP; Speed Rating: 1725 RPM; Frequency Ratin

Application

General Purpose

Features

.33HP,1725RPM,3PH,60HZ,56C,3413M,TEFC,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:0.8 A; 1.6 A
Horsepower:330.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:68.00%
Phase:Three Phase
Power Factor:57
Rotation:Reversible
Service Factor:1.35
Speed Rating:1,725 rpm
Voltage Rating:460 V; 230 V

Resources

Tech DrawingSpec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
56C
Frequency Rating
60 Hz
Horsepower
1/3 HP
Speed Rating
1800 RPM
Type
General Purpose Motor
Voltage Rating
230/460

Customers who bought this item also bought

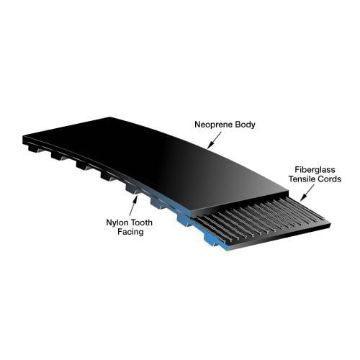

Picture of 510L050 GAT
