VM3541 BLD

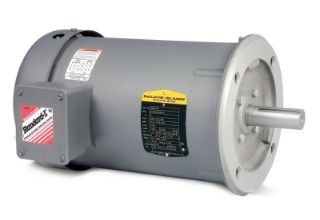

Picture of VM3541 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VM3541
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$591.89 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Baldor Electric; AC Motor; Phase: 3 PH; Voltage Rating: 230/460 VAC; Torque Rating: 1.2 LB-FT Full Load, 4.8 LB-FT Break Down, 3.5 LB-FT Pull-Up, 3.9 LB-FT Locked-Roter At 460 V, 60 HZ, 0.75 HP; Horsepower: 0.75 HP; Speed Rating: 3450 RPM; Frequency Ratin

Application

General Purpose

Features

.75HP,3450RPM,3PH,60HZ,56C,3413M,TEFC,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:1.3 A; 2.6 A
Horsepower:0.750 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:74.00%
Phase:Three Phase
Power Factor:73
Rotation:Reversible
Service Factor:1.25
Speed Rating:3,450 rpm
Voltage Rating:460 V; 230 V

Resources

Tech DrawingSpec SheetWarranty

Products Specifications

Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
56C
Frequency Rating
60 Hz
Horsepower
3/4 HP
Speed Rating
3600 RPM
Type
General Purpose Motor
Voltage Rating
230/460
