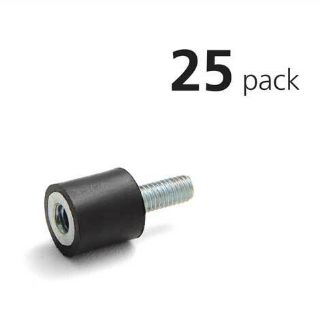

VMTSC20-20-M6-40-Z/25PK RUL

Product Details

Manufacturer part number:
VMTSC20-20-M6-40-FZNR/25PK
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
Availability:
1-2 weeks.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Type

Vibration Isolation Mounts

Description

This is a 25 pack of Ruland vibration isolation mounts, each of which has one M6 threaded stud and one M6 tapped hole to attach to equipment. Vibration isolation mounts in this pack are used in industrial environments to dampen shock loads and reduce wear on equipment. These vibration mounts are usually installed between two pieces of equipment. They have a natural rubber jacket which has good elasticity and chemical resistance properties. The jackets have Shore 40A hardness for the greatest level of dampening. These vibration isolation mounts have a steel metallic core which has high strength and durability. They are RoHS compliant.

Note

Performance ratings are for guidance only. The user must determine suitability for a particular application.

Specifications

Conflict Minerals:Compliant
Country of Origin:HU
Height (H1):20 mm
ISO 9001:2015:ISO 9001:2015 Certified
Manufacturer:Otto Ganter
Max Deflection:5.00 mm
Max Load:220 N
Metallic Body Finish:Zinc-Plated
Metallic Body Material:Steel
Mount Geometry:Cylindrical
Outside Diameter (OD):20 mm
Plate Thickness (PT):2.0 mm
Prop 65:<img src="https://www.ruland.com/media/wysiwyg/prop-65.png"><b>WARNING</b> This product can expose you to the chemical Soots, known to the State of California to cause cancer. For more information go to <a href="https://www.p65warnings.ca.gov/">www.P65Warnings.ca.gov</a>.
RoHS3:Compliant
Rubber Material:Natural Rubber
Shore Hardness:40A (+/- 5)
Spring Rate:44 N/mm
Stud Length (LS):18 mm
Tapped Hole Depth (lt):6 mm
Tariff Code:4016.99.6000
Temperature:176°F (86°C)
Thread (TH):M6 x 1.0
Unit of Measurement:Metric
