VRBM3546T BLD

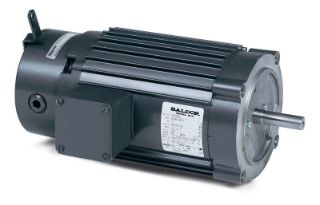

Picture of VRBM3546T BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VRBM3546T
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$3,135.67 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

General Purpose

Features

1HP,1725RPM,3PH,60HZ,143TC,3436M,TENV,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:143
Frequency Rating:60 Hz
Full Load Current:1.6 A; 3.2 A
Horsepower:1.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:80.00%
Phase:Three Phase
Power Factor:77
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,725 rpm
Voltage Rating:460 V; 230 V

Resources

Spec SheetWarranty

Products Specifications

Brand Name
Baldor
Enclosure
TENV
Frame
143TC
Frequency Rating
60 Hz
Horsepower
1 HP
Speed Rating
1800 RPM
Type
Unit Handling Motor
Voltage Rating
230/460 VAC
