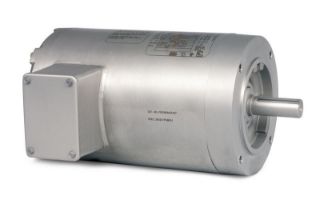

VSSEWDM3538 BLD

.5HP,1765RPM,3PH,60HZ,56C,3516M,TENV,F1
Manufacturer: Baldor Reliance
Manufacturer part number: VSSEWDM3538
Availability: Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
CBT - Cincinnati CBT - Springboro CBT - Sidney
0 0 0
CRUSH BEARINGS & DRIVES - LEXINGTON CRUSH BEARINGS & DRIVES - LOUISVILLE
0 0
Loading...
Price on Request

Product Details

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Washdown All Stainless

Features

.5HP,1765RPM,3PH,60HZ,56C,3516M,TENV,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:56
Frequency Rating:60 Hz
Full Load Current:1.8 A; 0.9 A
Horsepower:0.500 hp
Insulation Class:H
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:84.00%
Phase:Three Phase
Power Factor:64
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,765 rpm
Sub Brand:Super-E
Voltage Rating:230 V; 208 V; 460 V
