VSSEWDM3541 BLD

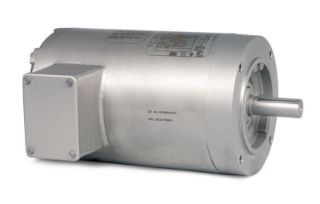

Picture of VSSEWDM3541 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VSSEWDM3541
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Washdown All Stainless

Features

.75HP,3500RPM,3PH,60HZ,56C,3520M,TENV,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TENV
Frame:56
Frequency Rating:60 Hz
Full Load Current:1.0 A; 2.0 A; 2.1 A
Horsepower:0.750 hp
Insulation Class:H
Mounting:F1
NEMA Design:B
NEMA Nominal Efficincy:86.50%
Phase:Three Phase
Power Factor:85
Rotation:Reversible
Service Factor:1.15
Speed Rating:3,500 rpm
Sub Brand:Super-E
Voltage Rating:460 V; 230 V; 208 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TENV
Frame
56C
Frequency Rating
60 Hz
Horsepower
3/4 HP
Speed Rating
3600 RPM
Type
Stainless Wash Down Motor
Voltage Rating
208-230/460
