VWDL3504 BLD

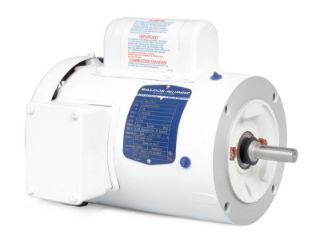

Picture of VWDL3504 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VWDL3504
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$875.47 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Application

Wash Down

Features

.5HP,1725RPM,1PH,60HZ,56C,3520L,TEFC,F1

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:3.7 A; 7.4 A
Horsepower:0.500 hp
Insulation Class:F
Mounting:F1
NEMA Design:N
NEMA Nominal Efficincy:68.00%
Phase:Single Phase
Power Factor:65
Rotation:Reversible
Service Factor:1.25
Speed Rating:1,725 rpm
Voltage Rating:230 V; 115 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
56C
Frequency Rating
60 Hz
Horsepower
1/2 HP
Speed Rating
1800 RPM
Type
Wash Down Motor
Voltage Rating
115/230
