VWDL3510 BLD

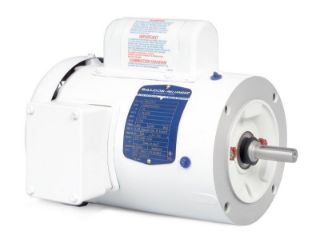

Picture of VWDL3510 BLD
Actual Product May Vary From Image

Product Details

Manufacturer:
Baldor Reliance
Manufacturer part number:
VWDL3510
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 1-3 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$1,176.95 / EA

Description

Brand Name

Baldor-Reliance

Type

AC Motors

Description

Electric Motors, Washdown Duty, Single Phase, Totally Enclosed, Rigid Mount, Horsepower: 1, RPM: 1725, Frame Size: 56C, Voltage Rating: 115/208-230 VAC, Frequency: 60 Hz, Rotation: Reversible, Full Load Amps: 67.0 Amp, Bearings: Ball, Service Factor: 1.15

Application

Wash Down

Features

1HP,1725RPM,1PH,60HZ,56C,3528L,TEFC,F1,N

Specifications

Base:No mounting
Country of Origin:US
Duty:Continuous
Enclosure:TEFC
Frame:56
Frequency Rating:60 Hz
Full Load Current:11.8 A; 5.9 A
Horsepower:1.000 hp
Insulation Class:F
Mounting:F1
NEMA Design:L
NEMA Nominal Efficincy:70.00%
Phase:Single Phase
Power Factor:78
Rotation:Reversible
Service Factor:1.15
Speed Rating:1,725 rpm
Voltage Rating:230 V; 115 V

Resources

Spec SheetWarranty

Products Specifications

Application
Washdown
Brand Name
Baldor-Reliance
Enclosure
TEFC
Frame
56C
Frequency Rating
60 Hz
Horsepower
1 HP
Speed Rating
1800 RPM
Type
Wash Down Motor
Voltage Rating
115/230
