VX220LZ2A SMC

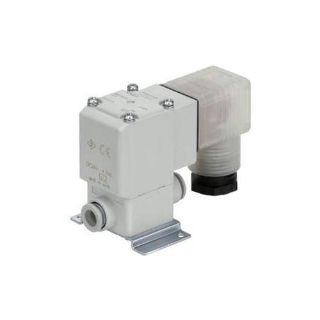

Picture of VX220LZ2A SMC
Actual Product May Vary From Image

Product Details

Manufacturer:
SMC
Manufacturer part number:
VX220LZ2A
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Ships in 2-4 days.
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$33.00 / EA

Description

Brand Name

SMC®

Type

2-Port

Description

SMC®, VX220LZ2A, Valve, 2-Port, Series: VX22, 10 mm Nominal, 1 MPa Pressure, -20 to 60 deg C, 0.50 Cv Flow Rate, Media: Air/Water, 4 mm Orifice, Resin Body, NBR/FKM Softgoods

Standards

RoHS Compliant | IP65

Features

  • Normally Closed and Normally Open type available, Class B coil
  • Special construction improves service life when compared with current shading coil
  • Power consumption, size 1 - 4.5w; size 2 - 7w; size 3 - 10.5w
  • Body Material, aluminum, resin

Specifications

Body Material:Resin
Country of Origin:JP
Flow Rate:0.50 Cv
Media:Air/Water
Nominal Size:10 mm
Orifice Size:4 mm
Pressure Rating:1 MPa
Series:VX22
Softgoods Material:NBR/FKM
Temperature Rating:-20 to 60 deg C
