W1280 MSG

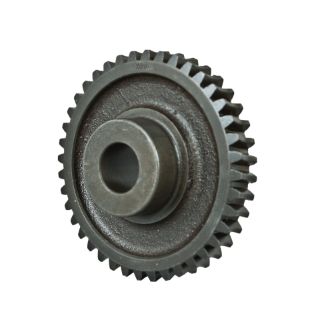

Picture of W1280 MSG
Actual Product May Vary From Image

Product Details

Manufacturer:
Martin Sprocket & Gear
Manufacturer part number:
W1280
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 4 days
Estimated dates are contingent upon manufacturer stock.
Log in for more accurate pricing
$172.36 / EA

Description

Brand Name

Martin

Type

Reborable Web

Description

Worms and worm gears are used to power right angle, non-intersecting shafts. In normal applications the worm gear is driven by the worm. The most popular use of worms and worm gears is in applications where high ratio speed reduction is desired in a relatively limited space. They are also used in applications where high resistance to the worm gear shaft reversing and driving back through the worm is desired.
Martin Worm Gear, Reborable Web, 0.625 to 1.126 in Bore Dia, 6.853 in Outside Dia, 80:1 Gear Ratio, 1 Number of Threads, 80 Teeth, 12 Diametral Pitch, 6.666 in, 1/2 in Face Width, Right Hand Direction of Rotation, Type B, 2 in Hub Dia, 3/4 in Hub Projection, 14.5 deg Pressure Angle, 1/8 x 1/16 in Keyway, Cast Iron

Features

  • Precise machining and processes ensure consistent finish and high quality
  • AGMA 6 to 8 commercial class gear

Specifications

Bore Diameter:0.625 to 1.126 in
Country of Origin:US
Diametral Pitch:12
Direction of Rotation:Right Hand
Face Width:1/2 in
Gear Ratio:80:1
Hub Diameter:2 in
Hub Projection:3/4 in
Hub Type:Type B
Keyway Size:1/8 x 1/16 in
Material:Cast Iron
Number of Teeth:80
Number of Threads:1
Outside Diameter:6.853 in
Pitch Diameter:6.666 in
Pressure Angle:14.5 deg
