W516 50/1 A WR 1.500 CAST IRON HUB

Name: W516 50/1 A WR 1.500 CAST IRON HUB
Brand: Hub City
SKU: W516 50/1 A WR 1.500 CAST IRON HUB
Availability: OutOfStock

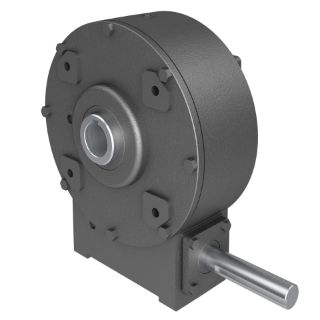

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0220-20622

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: W516CI, 50:1 Gear Ratio, 1-1/2 hp Input, Shaft Input, Hollow Bore Output, 1 in Dia x 4-7/32 in L Input, 1-1/2 in Dia Output, 17 rpm Output Maximum Speed, 850 rpm Input Maximum Speed, 3613 in-lb Output, 5.16 in Centre Distance, 1/4 x 1/8 in Input, 3/8 x 3/16 in Output Keyway, Conventional Oil Lubrication, Cast Iron, 12-9/32 in H

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Cast iron gears
Tapered roller bearings
Heavy duty industrial seals

Specifications

Centre Distance:	5.16 in
Dimensions:	12-9/32 in H
Gear Ratio:	50:1
Horsepower:	1-1/2 hp Input
Input Maximum Speed:	850 rpm
Input Size:	1 in Dia x 4-7/32 in L
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Input, 3/8 x 3/16 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	17 rpm
Output Size:	1-1/2 in Dia
Output Type:	Hollow Bore
Series:	W516CI
Torque Rating:	3613 in-lb Output
