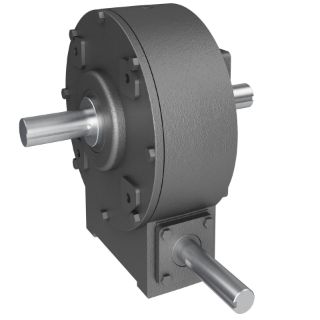

W516 50/1 A WR BRONZE HUB

Name: W516 50/1 A WR BRONZE HUB
Brand: Hub City
SKU: W516 50/1 A WR BRONZE HUB
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturers:

Hub City , Hub City , Hub City

Manufacturer part number:

0220-20616

CBT Inventory

Vendor Inventory

Availability:

1-2 weeks.

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Brand Name

Hub City®

Type

Right Angle Single Reduction Style A

Description

Regal Beloit offers a broad selection of right angle worm gear reducers that range from an industry interchange design with modular accessories to cast iron and aluminum designs. These products are intended for a wide variety of applications.

Hub City® Worm Gear Reducer, Right Angle Single Reduction Style A, Series: W516B, 50:1 Gear Ratio, 4.2 hp Input, Shaft Input, Shaft Output, 1 in Dia Input, 1-1/4 in Dia x 3 in L Output, 35 rpm Output Maximum Speed, 1750 rpm Input Maximum Speed, 5402 in-lb Output, 5.16 in Centre Distance, 1/4 x 1/8 in Output Keyway, Conventional Oil Lubrication, Cast Iron

Application

Agriculture, Food, Grain Handling, Packaging Machinery, Cement and Asphalt

Standards

AGMA Class 1

Features

Modular design
Universal mounting dimensions
Bronze gears
Tapered roller bearings
Heavy duty industrial seals

Specifications

Centre Distance:	5.16 in
Gear Ratio:	50:1
Horsepower:	4.2 hp Input
Input Maximum Speed:	1750 rpm
Input Size:	1 in Dia
Input Type:	Shaft
Keyway Size:	1/4 x 1/8 in Output
Lubrication Type:	Conventional Oil
Material:	Cast Iron
Output Maximum Speed:	35 rpm
Output Size:	1-1/4 in Dia x 3 in L
Output Type:	Shaft
Series:	W516B
Torque Rating:	5402 in-lb Output
