WS22210-E1-XL-2RSR FAG

Name: WS22210-E1-XL-2RSR FAG
Brand: INA
SKU: WS22210-E1-XL-2RSR FAG
Price: 337.48 USD
Availability: OutOfStock

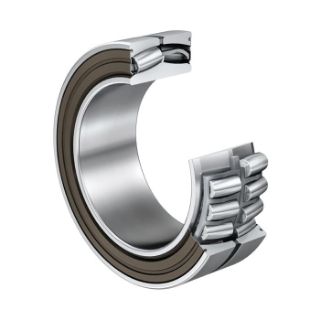

Actual Product May Vary From Image

Product Details

Manufacturer:

INA

Manufacturer part number:

WS22210-E1-XL-2RSR

CBT Inventory

Vendor Inventory

Availability:

Ships in 3-5 days.

Estimated dates are contingent upon manufacturer stock.

$337.48 / EA

Description

Brand Name

FAG

Type

Cylindrical Bore

Description

Spherical roller bearings are a special rolling bearing design whose inner ring runs inside the outer ring on two rows of rollers. The bearings have an angular adjustment of up to 2 deg and are not only designed for high load carrying capacity but can also compensate misalignments.

FAG Spherical Roller Bearing, Cylindrical Bore, Series: 222-E1, 50 mm Bore, 90 mm OD, 2 Rows, 28 mm Width, Double Seal Closure, 109 kN Load, NBR Seal, Sheet Steel Cage, 2440 rpm Maximum, -40 to 100 deg C

Application

Dryer Rolls and Calendars, Mining Machinery, Conveyor Belts, Crushers, Vibrating Screens, Vertical Mills, Roller Presses, Continuous Casting Plant, Passenger Elevators, Marine Propulsion Systems

Features

Spherical roller bearings are suitable where rearing arrangements are subjected to high and very high radial loads
Relatively high axial loads occur on one or both sides, in addition to high radial forces
Dynamic or static misalignments of the shaft relative to the housing, or deflections of the shaft, must be freely compensated by the bearing
High shock type loads must be supported dynamically
Locating bearings with a very high load carrying capacity are required
Two sheet steel cages, surface hardened or coated, guidance on outer ring
X-life design
Lip seals on both sides with sheet steel reinforcement, made from nitrile rubber
Grease fill level 25% to 40%, filled with high pressure grease
Without central rib on inner ring
109 kN dynamic/107 kN static

Specifications

Bore Diameter:	50 mm
Cage Material:	Sheet Steel
Closure Type:	Double Seal
Country of Origin:	DE
Load Capacity:	109 kN
Maximum Speed:	2440 rpm
Number of Rows:	2
Outside Diameter:	90 mm
Seal Material:	NBR
Series:	222-E1
Temperature Rating:	-40 to 100 deg C
Width:	28 mm
