Actual Product May Vary From Image

WSL150 NER

Name: WSL150 NER
Brand: Appleton
SKU: WSL150 NER
Price: 15.34 USD
Availability: InStock

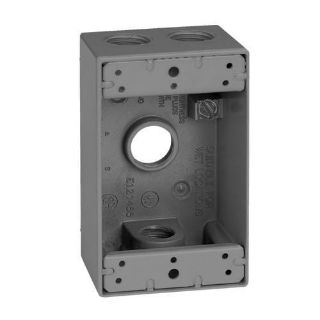

Appleton® ETP™ WSL150 Weatherproof Outlet Box, Die Cast Aluminum, 18.3 cu-in, 1 Gang, 4 Outlets, 4.56 in H x 2.81 in W x 2 in D

Manufacturer: Appleton

Manufacturer part number: WSL150

Availability: Ships in 5-7 days.

Estimated dates are contingent upon manufacturer stock.

CBT - Cincinnati	CBT - Springboro	CBT - Sidney
0	2	0
CRUSH BEARINGS & DRIVES - LEXINGTON	CRUSH BEARINGS & DRIVES - LOUISVILLE
0	0
Loading...

$15.34

Qty:

Product Details

Brand Name

Appleton®

Description

Appleton™ and O-Z/Gedney™ one-and two-gang metallic weatherproof outlet boxes, extension and covers are designed for branch circuit wiring in wet, damp or dry locations. They may be used as a junction box or a device box for switches, receptacles, GFCIs, etc. The continuous, seamless die cast construction prevents entry of dirt, dust and moisture. A polyester powder coating provides weatherproof durability. Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry.

Appleton® ETP™ Weatherproof Outlet Box, 4 Outlets, 1 Gang, 1/2 in Hub, 18.3 cu-in, Die Cast Aluminum, Polyester Powder Coated, Gray, 4.56 in H x 2.81 in W x 2 in D

Application

Switches, Receptacles and GFCI Applications

Standards

Features

Rugged continuous and seamless die cast construction prevents entry of dirt, dust and moisture
Polyester powder coating is applied for uniform cosmetic coating and weatherproof durability
Mounting can be achieved with mounting lugs (provided) or by using the integral mounting knockouts
Smooth, accurately tapped hubs prevent wire abrasion
Clear UL marking and volumetric marking cast into each box and extension ring facilitate electrical inspection
Continuous box and cover compression ensure complete sealing at gasket interface to prevent moisture entry
Lockable covers and covers with integral devices are offered
Mounting hardware and gasket provided with each cover
Locking swivel knuckle on lamp holders permits positive lamp positioning and accurate directional aiming
Lamp holders are supplied with all hardware including locknuts, porcelain sockets and internal gaskets for reliability and weather protection
Photocells and lamp holders are supplied with long leads (4 in from the end of the knuckle) to facilitate wiring
Lighting fixtures are factory assembled and fully gasketed to ensure fast and easy installation
Complete installation instructions are provided with each item
In use covers include patented inserts and comply with NEC requirements

Includes

(2) Closure Plugs, (2) Mounting Lugs and Green Ground Screw

Specifications

Capacity:	18.3 cu-in
Color:	Gray
Country of Origin:	IN
Dimensions:	4.56 in H x 2.81 in W x 2 in D
Finish:	Polyester Powder Coated
Hub Size:	1/2 in
Material:	Die Cast Aluminum
Number of Gangs:	1
Number of Outlets:	4
