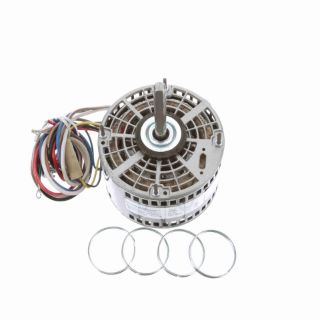

X014 MAR

Name: X014 MAR
Brand: Marathon Electric Motors
SKU: X014 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X014

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

048A17O154

Features

Open frame and brackets Multi-speed model Grommeted lead exit, Weather resistant reversing plug 2-1/4” resilient ring mounting (base not included, see Accessories section) 2 1/2” adapter rings supplied, shipped loose in box 3/4" thru bolts, shaft end, 30” long leads Automatic reset thermal protector Capacitor not included, see Accessories section

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	9.25
CE:	N
Connection Drawing Number:	6906493
Country of Origin:	Mexico
CSA:	Y
Current:	1.8-1.8
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	62
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Open Air Over
Frame Length (IN):	3.75
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Z
Frame Type:	48Z
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.25
Insulation Class:	B
IP Code:	10
KVA Code:	C
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Resilient Ring - Extended Studs
NEMA Design:	NO DESIGN CODE
Number of Poles:	4
Number of Speeds:	3
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS403409-375
Phases:	1
Power Factor:	99.2
Power Rating (HP):	0.25
Power Rating (kW):	0.19
Resistance Main:	0
Rotation:	Selective Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.500
Shaft Extension:	4.06
Shaft Type:	Single Special Extension
Speed:	1625
Speed Max:	1625
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	208-230
