X049 MAR

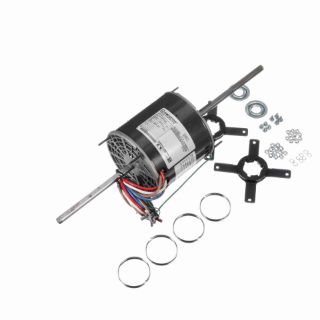

Picture of X049 MAR
Actual Product May Vary From Image

Product Details

Manufacturer:
Marathon Electric Motors
Manufacturer part number:
X049
CBT Inventory
0
Vendor Inventory
Loading...
CBT - CINCINNATI
0
CBT - SPRINGBORO
0
CBT - SIDNEY
0
CBT - LEXINGTON
0
CBT - LOUISVILLE
0
Availability:
Expected Leadtime 10 days
Estimated dates are contingent upon manufacturer stock.
Price on Request

Description

Alternate Supplier #

048A11O773

Features

Open frame and brackets Multi-speed capability Automatic reset thermal protector 30” leads, CCW rotation, fixed lead end 1” extended Thru-bolts both ends 20” overall length Capacitor not included, see Accessories section

Specifications

Assembly/Box Mounting:F1 ONLY
C Dim (IN):20.00
CE:N
Connection Drawing Number:6906495
Country of Origin:Mexico
CSA:Y
Current:1.5
DE Bearing Size:6203
DE Bearing Type:Ball
Duty:Continous
Efficiency:50.4
Electrical Type:Permanent Split Capacitor
Enclosure Type:Open Air Over
Frame Length (IN):3.5
Frame Material:Rolled Steel
Frame Size:48
Frame Suffix:Z
Frame Type:48Z
Frequency:60
Harmonized Tariff Code:8501.40.4040
HP:0.17
Insulation Class:B
IP Code:10
KVA Code:C
Max Ambient:40°C
Motor Orientation:Horizontal
Mounting Type:Round - Extended Studs
NEMA Design:NO DESIGN CODE
Number of Poles:6
Number of Speeds:3
ODE Bearing Size:6203
ODE Bearing Type:Ball
Outline Drawing Number:A-SS403655-350
Phases:1
Power Factor:92.7
Power Rating (HP):0.17
Power Rating (kW):0.13
Rotation:Fixed Counterclockwise
Service Factor:1
Shaft Diameter (IN):0.500
Shaft Extension:7.81
Shaft Type:Special Extension Both Sides
Speed:1075
Speed Max:1075
Starting Type:Across The Line
Type of Overload Protector:Automatic Lock Rotor Only
UL:Recognized
Voltage:208-230

Resources

Engineering DrawingSpec Sheet
