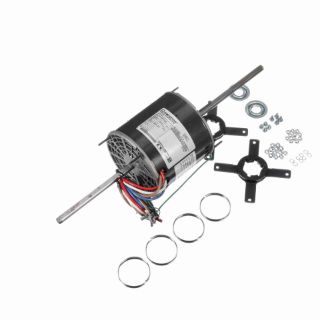

X059 MAR

Name: X059 MAR
Brand: Marathon Electric Motors
SKU: X059 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X059

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

048A17O2002

Features

Open frame and brackets Multi-speed capability Automatic reset thermal protector 30” leads, CCW rotation, fixed lead end 1” extended Thru-bolts both ends 20” overall length Capacitor not included, see Accessories section Ball bearings UL Recognized and CSA Certified

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	20.00
CE:	N
Connection Drawing Number:	SEE OUTLINE
Country of Origin:	United States of America
CSA:	Y
Current:	1.8-1.8
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	62
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Open Air Over
Frame Length (IN):	3.75
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Z
Frame Type:	48Z
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.25
Insulation Class:	A
IP Code:	10
KVA Code:	C
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Round - Extended Studs
NEMA Design:	NO DESIGN CODE
Number of Poles:	4
Number of Speeds:	3
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS403647-375
Phases:	1
Power Factor:	99.2
Power Rating (HP):	0.25
Power Rating (kW):	0.19
Resistance Main:	0
Rotation:	Fixed Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.500
Shaft Extension:	7.81
Shaft Type:	Special Extension Both Sides
Speed:	1625
Speed Max:	1625
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	208-230
