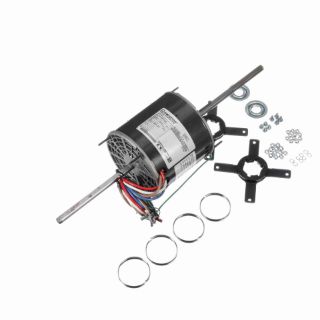

X068 MAR

Name: X068 MAR
Brand: Marathon Electric Motors
SKU: X068 MAR
Availability: OutOfStock

Actual Product May Vary From Image

Product Details

Manufacturer:

Marathon Electric Motors

Manufacturer part number:

X068

CBT Inventory

Vendor Inventory

Availability:

Expected Leadtime 10 days

Estimated dates are contingent upon manufacturer stock.

Price on Request

Description

Alternate Supplier #

048A11O2015

Features

Open frame and brackets Multi-speed capability Automatic reset thermal protector 30” leads, CCW rotation, fixed lead end 1” extended Thru-bolts both ends 20” overall length Capacitor not included, see Accessories section

Specifications

Assembly/Box Mounting:	F1 ONLY
C Dim (IN):	19.38
CE:	N
Connection Drawing Number:	6906495
Country of Origin:	Mexico
CSA:	Y
Current:	5.0
DE Bearing Size:	6203
DE Bearing Type:	Ball
Duty:	Continous
Efficiency:	69.5
Electrical Type:	Permanent Split Capacitor
Enclosure Type:	Open Air Over
Frame Length (IN):	5.25
Frame Material:	Rolled Steel
Frame Size:	48
Frame Suffix:	Y
Frame Type:	48Y
Frequency:	60
Harmonized Tariff Code:	8501.40.4040
HP:	0.75
Insulation Class:	B
IP Code:	10
KVA Code:	B
Max Ambient:	40°C
Motor Orientation:	Horizontal
Mounting Type:	Round Belly Band
NEMA Design:	NO DESIGN CODE
Number of Poles:	6
Number of Speeds:	3
ODE Bearing Size:	6203
ODE Bearing Type:	Ball
Outline Drawing Number:	A-SS403644-525
Phases:	1
Power Factor:	88.8
Power Rating (HP):	0.75
Power Rating (kW):	0.56
Resistance Main:	0
Rotation:	Fixed Counterclockwise
Service Factor:	1
Shaft Diameter (IN):	0.500
Shaft Extension:	6.81/6.81
Shaft Type:	Special Extension Both Sides
Speed:	1075
Speed Max:	1075
Starting Type:	Across The Line
Type of Overload Protector:	Automatic Lock Rotor Only
UL:	Recognized
Voltage:	208-230
